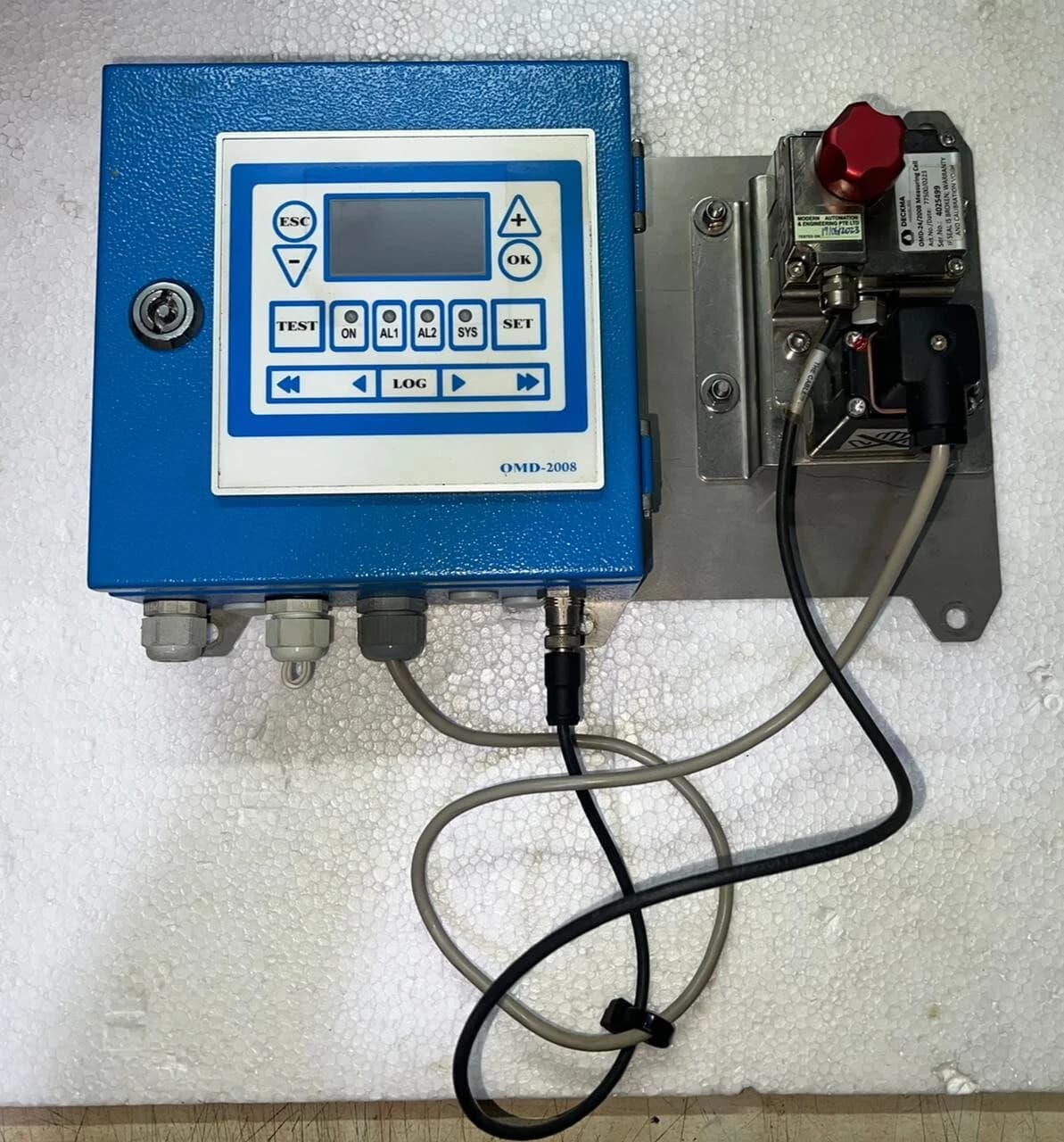

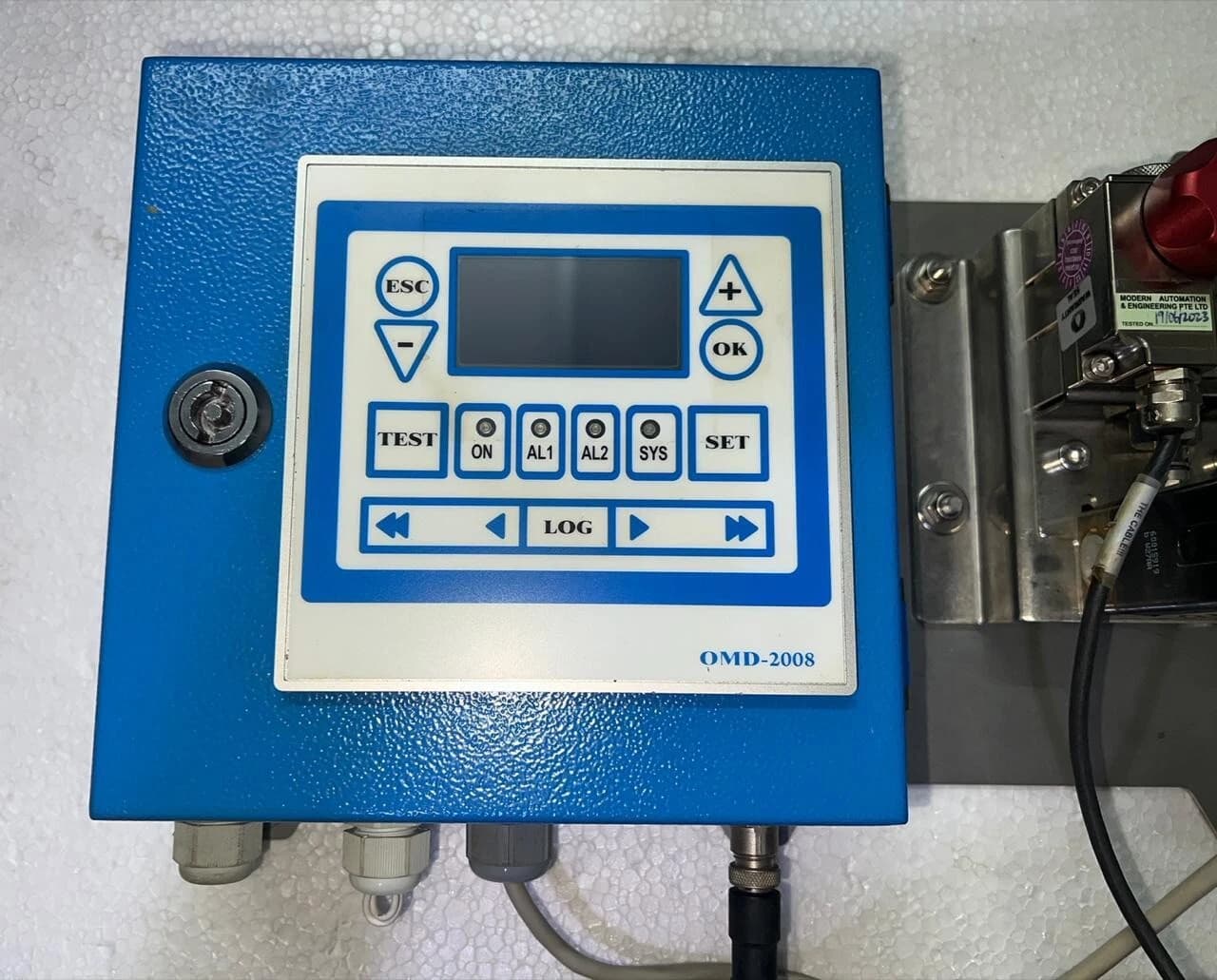

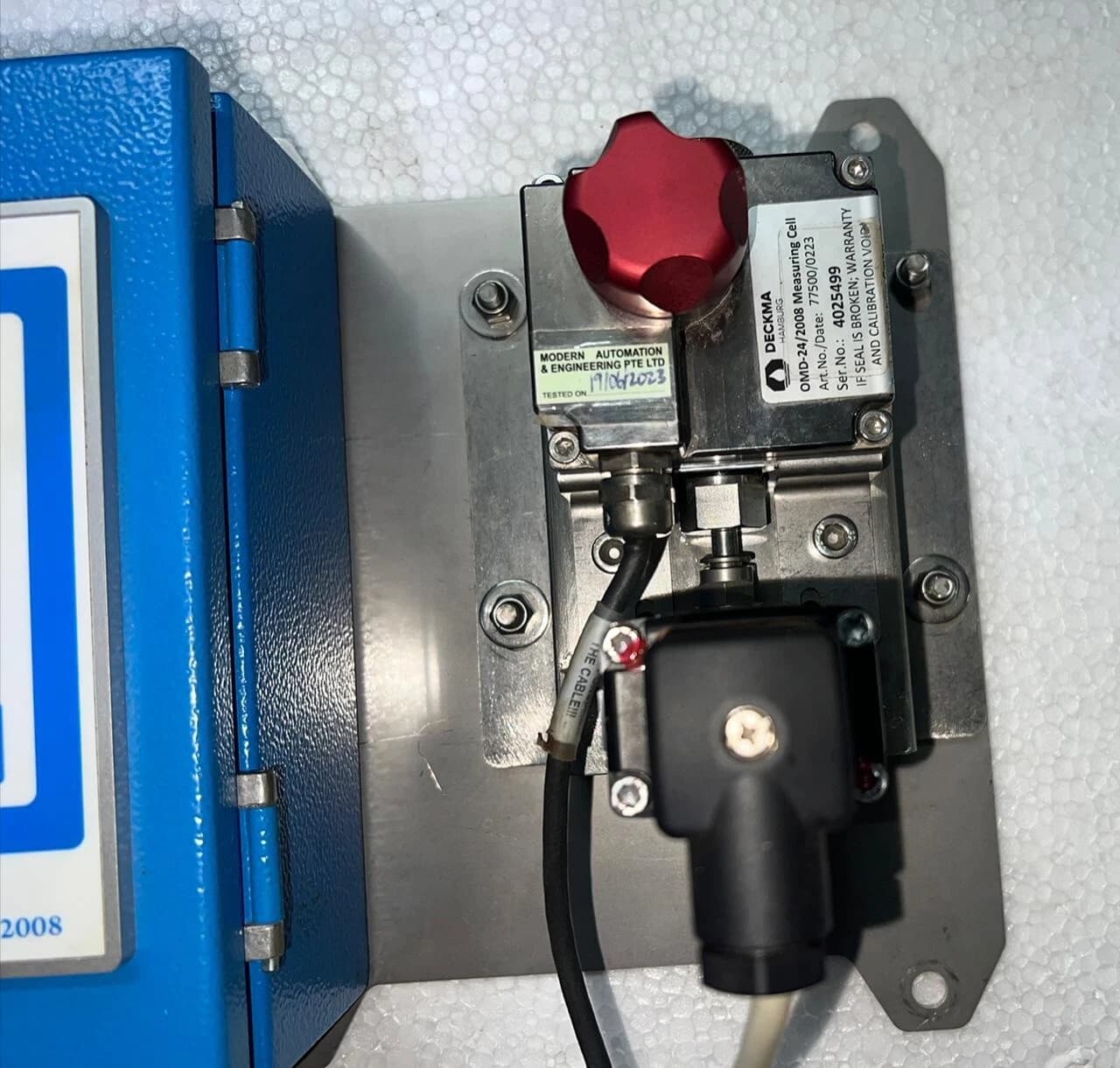

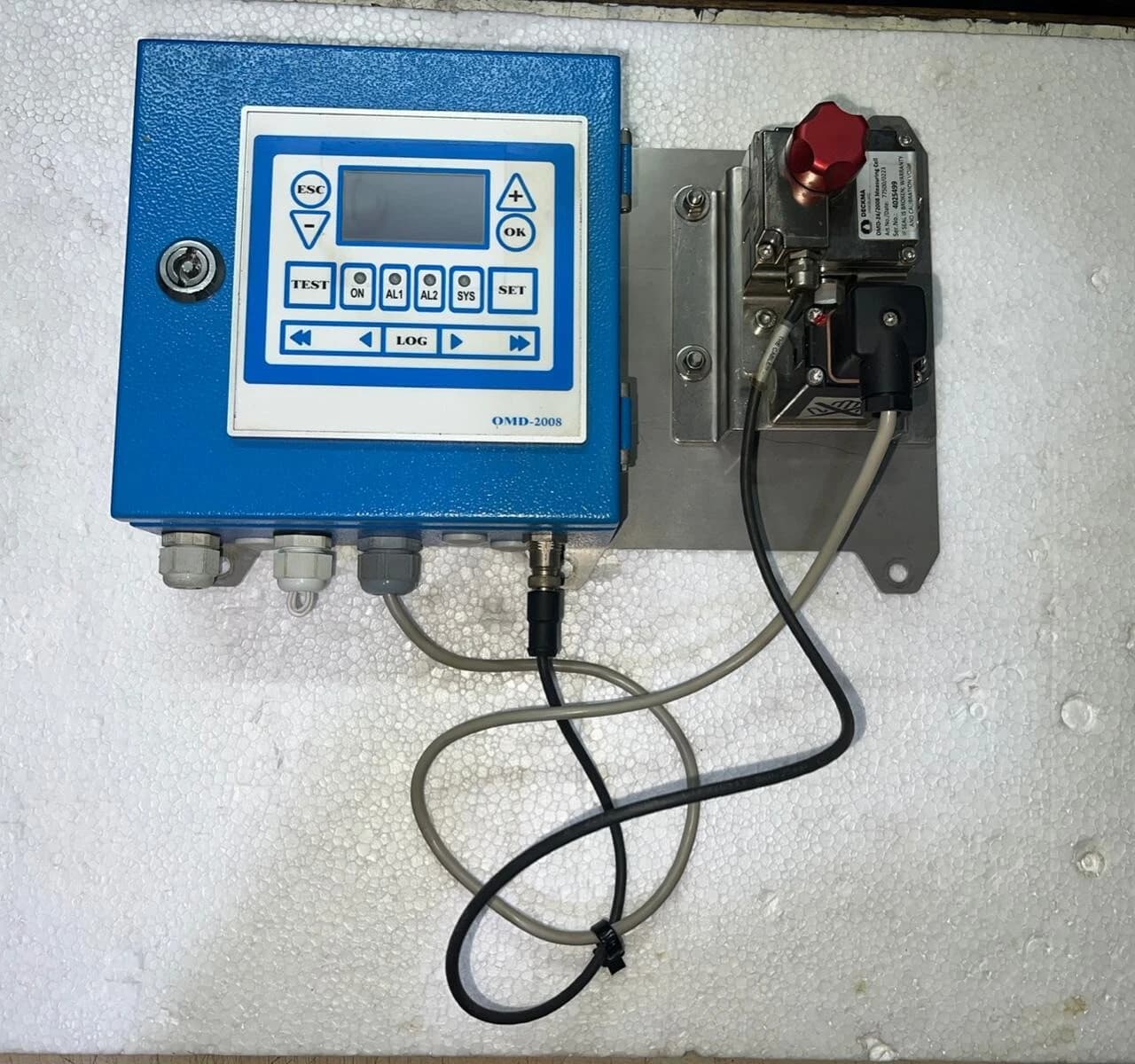

Deckma Hamburg OMD-2008 Bilge alarm with Measuring Cell

Deckma OMD-2008 15 PPM Bilge Alarm

The Deckma OMD-2008 15 PPM Bilge Alarm is a highly reliable marine oil content monitoring system designed for use with oily water separators to ensure compliance with IMO MEPC.107(49) regulations. Engineered for commercial vessels, offshore platforms, and marine installations, the OMD-2008 continuously monitors oil content in discharged water and automatically activates alarms when oil concentrations exceed preset limits. Its advanced optical sensing technology delivers accurate measurements, fast response times, and dependable operation even in demanding marine environments. The rugged IP65-rated construction, low maintenance design, and flexible installation options make it one of the most trusted bilge alarm systems used worldwide.

Key Features

• IMO MEPC.107(49) compliant 15 PPM Bilge Alarm
• Measurement range: 0–30 ppm with high accuracy
• Adjustable alarm set points from 1–15 ppm
• Fast response time for oily water separator systems
• 0/4–20 mA output for remote monitoring and integration
• Rugged IP65 marine-grade enclosure
• Automatic voltage selection (24–240V AC/DC)
• Low maintenance optical measuring cell
• Built-in data logging capability
• Suitable for ships, tankers, offshore vessels, and marine installations
• Available with Electric Valve (EV), Auto Clean (EVA), and Flow Control (EVFC) configurations

For More information, Kindly refer to the below Manual(Downloadable PDF):

DECKMA HAMBURG 2008 INSTRUCTION MANUAL
